Mesh Bag Filters

For removal of solid non-deformable particles

Untitled design-8

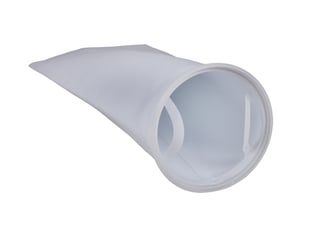

Mesh filter bags serve as a barrier against solid particles that could potentially disrupt downstream processes within a filtration system. Operating on the principle of surface filtration, like a sieve, effectively capturing particles larger than the pore size of the media, provided these particles are solid and non-deformable. The mesh filter bag design and construction ensures that there is zero risk of fibre migration from the filter, thus preventing any additional contamination of the liquid passing through it. Available Mesh filter bags options:

  1. Monofilament Meshes: These meshes feature a tightly woven structure of single filaments with an absolute micron rating. Manufactured under food-safe and silicone-free conditions.

  2. Multifilament Meshes: Comprising multiple filaments twisted together and woven into a nominal rated mesh structure. Multifilament meshes are suitable for non-critical applications.

Why Choose PoreFiltration?

  • Extensive product range
  • Best Price GUARANTEED!
  • Specialist support team with deep knowledge of liquid & gas applications
  • Reliable quality and delivery.

Technical details

  • Mesh material: Monofilament - Nylon, Polypropylene, polyester and fluoropolymer Multifilament - Polyester

  • Available Bag diameters: 7", 4"

  • Available sizes: 1, 2, 3 & 4

  • Available micron ratings: Monofilament - 1 - 1,500μm                                                                                                     Multifilament - 100 to 400μm

  • Maximum operating temperature: PP 900C, Nylon 1100C, PE 1400C, PTFE 2600C

  • Available collars: A range of collars and rings available to allow retrofitting of existing housings

  • Quality: Mesh bags have sown seams, and a binding tape seam is standard on micron ratings below 60μm. All filter bags are supplied silicone-free


  • Food processing
  • Tanker transfer applications
  • Incoming solid and liquid sieving
  • Water filtration including aquariums
  • Paints, inks, resins and other types of coatings

Need a Replacement?

Order Now

Get a Quick Quote?

Ask an Expert

Speak to an Expert

+44(0) 203 750 8060

Technical details [Product A]

Filter Medium Polypropylene
Available Lengths

9.75" (24.8cm), 10.0" (25.4cm), 20.0" (50.8cm), 30.0" (76.2cm), 40.0" (101.6cm)

Available Micron Ratings

0.5, 1,3, 5, 10, 20, 30, 50, 75, 100μm

Internal Diameter

1.1" (28mm) / 4.5" (114mm)

External Diameter

2.5" (63mm)

Max Operating Temperature  XX degrees
Maximum Differential Pressure

 60psid @ 70°F (4.1 Bar @ 30°C) 50psid @ 122°F (3.4 Bar @ 50°C) 30psid @ 158°F (2 Bar @ 70°C) 15psid @ 180°F (1 Bar @ 82°C)

Recommended Changeout Differential Pressure

37psid (2.5 Bar) @ 30°C


All filter bags are supplied free of Silicone. FDA Approved. EU XXX.
