Carbon Block Filters

Optimal removal of colour, organics, and impurities in liquids & solutions

carbon-filtersEDIT

Our ClearPore carbon block cartridges offer the highest performance carbon in our range.

Enhanced contamination removal is acheived by using a high surface area sintered activated carbon block that prolongs contact time with fluids. The sintering of the carbon prevents fluidising, channeling and bypass that occurs in granular carbon beds (GCB). These are key reasons why carbon cartridges have replaced these beds plus also prevents potential Health & Safety and product contamination caused by GCBs.

Chemical compatibilty is high due to the combination of carbon block with polypropylene hardware.

Why Choose PoreFiltration?

  • Extensive product range
  • Best Price GUARANTEED!
  • Specialist support team with deep knowledge of liquid & gas applications
  • Reliable quality and delivery.

Technical details

  • Filter Medium: Carbon sintered block

  • Cartridge hardware: Polypropylene end caps, core, wrap and netting

  • Available lengths: 10.0", 20.0", 30.0", 40.0"

  • Available micron rating:  5μm

  • Available end caps: DOE, Code 7, 2, 8 and 3

  • Available formats: Cartridge

Applications

Colour, ozone and organics reduction for:

Need a Replacement?

Order Now

Get a Quick Quote?

Ask an Expert

Speak to an Expert

+44(0) 203 750 8060

Technical details [Product A]

Filter Medium Polypropylene
Available Lengths

9.75" (24.8cm), 10.0" (25.4cm), 20.0" (50.8cm), 30.0" (76.2cm), 40.0" (101.6cm)
Available Micron Ratings

0.5, 1,3, 5, 10, 20, 30, 50, 75, 100μm
Internal Diameter

1.1" (28mm) / 4.5" (114mm)
External Diameter

2.5" (63mm)
Max Operating Temperature  XX degrees
Maximum Differential Pressure

 60psid @ 70°F (4.1 Bar @ 30°C) 50psid @ 122°F (3.4 Bar @ 50°C) 30psid @ 158°F (2 Bar @ 70°C) 15psid @ 180°F (1 Bar @ 82°C)
Recommended Changeout Differential Pressure

37psid (2.5 Bar) @ 30°C
Regulatory

All filter bags are supplied free of Silicone. FDA Approved. EU XXX.
Datasheets

DOWNLOAD DATASHEET



Related Products

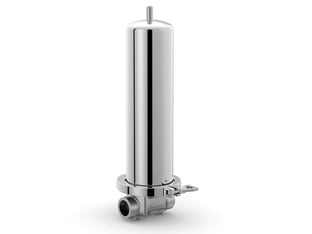

PVI Range of Single Cartridge Industrial Housings

PVI-range-of-single-industrial

Single cartridge st.st housings for industrial liquid and steam applications for flows from 1 to 5 m3/hr and rated at 8, 16 and 40 bar.

View the product

PVI Range of Multi Cartridge Industrial Housings

PVI-range-of-multi-industrial

Multi-cartridge st.st. housings for industrial liquid applications for flows from 5 to 200 m3/hr and rated to 10bar.

View the product

Polypropylene Pleated Depth Cartridge Filter

depth-prefiltration-filters

Typically the first choice on prefiltration applications. Ideal for solvent, chemicals, and process water applications.

View the product
