Reverse Osmosis (RO) & Sea Water RO Protection

Extending RO membrane life on all types Desalination Water Treatment Plants

The Steps in Reverse Osmosis Protection

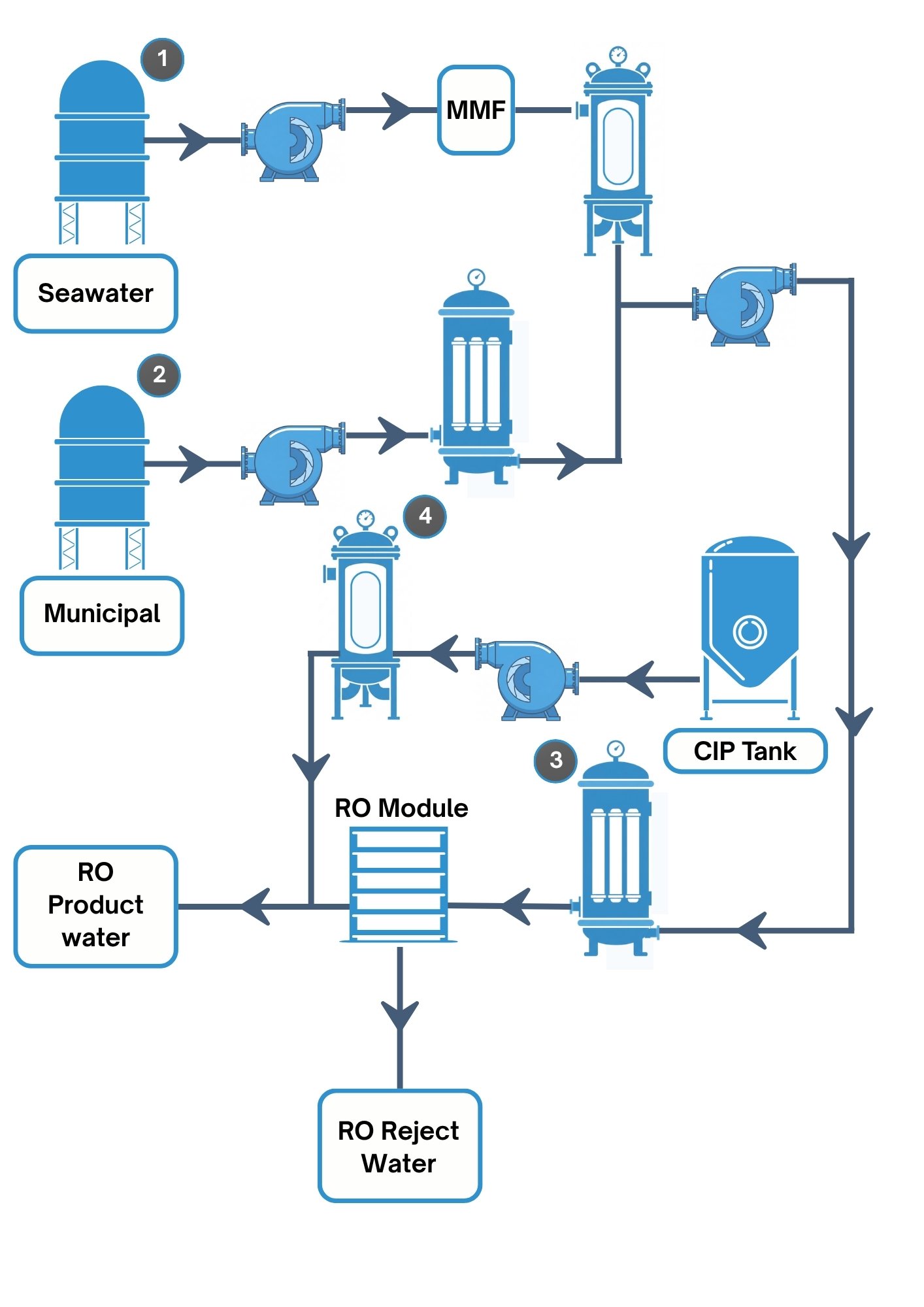

ROSWRO System FINAL

Sea water - Intake Filtration
The desalination process begins with coarse screening and filtration to remove seaweed, shells, marine organisms, sand, and other large debris. This protects downstream pumps and treatment equipment from excessive wear and damage.

Seawater contains high levels of suspended solids, colloidal material, and biological contaminants, so initial first multimedia filtration is used followed by a bag filtration system acting as a guard filter.

Recommended Products:

Municipal - Raw Water Filtration & Chlorine Removal
Before water reaches the RO system, pre-treatment is required to protect both the equipment and the membranes. Coarse filtration removes suspended solids, sand, rust, and other particulate matter that could damage pumps and downstream components. Where the feedwater originates from a municipal supply, free chlorine or chloramines must also be removed, as these oxidising agents can rapidly damage polyamide RO membranes. Activated carbon filters are commonly used to remove disinfectants while also reducing organic contaminants that may contribute to membrane fouling.



Recommended Products:

RO Pre-Filtration
RO membranes are highly sensitive to particulate fouling. Cartridge filters, typically rated at 5 microns, remove residual suspended solids, colloids, and debris before the water enters the membrane system. Effective pre-filtration reduces membrane fouling, lowers operating costs, and maximises membrane life.

The choice of housing is dependent on raw water source with plastic, GRP and st.st all available.

Recommended Products:

CIP Solution Filtration
During Clean-in-Place (CIP) operations, cartridge filters are often installed on the cleaning solution recirculation loop to remove membrane foulants, precipitated scale, biofilm fragments, and other contaminants released during cleaning. Continuous filtration improves cleaning effectiveness and helps prevent removed contaminants from being redeposited onto the membrane surface.

Recommended Products:



Reverse osmosis (RO) and seawater reverse osmosis (SWRO) systems are central to modern water treatment, delivering high-purity water across a wide range of industries. As demand for efficiency and reliability grows, protecting membrane performance has become increasingly critical. Pre-treatment and filtration processes play a key role in minimising fouling, scaling, and biofilm formation, helping to extend membrane life and maintain consistent output quality. For operators, the challenge is to optimise protection strategies that safeguard system integrity while supporting operational efficiency, whether in compact installations or large-scale desalination plants, ensuring stable performance and reduced downtime over the long term.

Speak to an Expert

+44(0) 203 750 8060

Drop Us an Email

enquiries@porefiltration.co.uk



RO & SWRO Filtration Resources and Support

Why do RO membranes foul so quickly?

RO membranes often foul due to suspended solids, organic matter, scaling minerals, and biological contaminants present in the feed water. Without effective pre-treatment, these particles accumulate on the membrane surface, restricting performance and increasing operating pressure.

What causes a drop in RO system performance or flow rate?

A reduction in permeate flow is typically linked to fouling or scaling on the membrane surface, which blocks pores and restricts water passage. This can lead to increased energy consumption and inconsistent output. Maintaining low fouling conditions through high-efficiency depth filters or pleated cartridge filters designed for low SDI performance helps sustain flow rates and ensures stable system operation.

How can I prevent biofouling in RO membranes?

Biofouling occurs when bacteria and microorganisms form a biofilm on the membrane surface, making it harder to clean and reducing efficiency over time. Controlling this begins upstream, where fine depth filters or absolute-rated cartridge filters remove particulates and nutrients that support microbial growth.

Why is chlorine removal important for RO membrane protection?

Most RO membranes, especially polyamide types, are highly sensitive to chlorine, which can degrade the membrane structure and reduce salt rejection. To prevent this, activated carbon filters are commonly used in the pre-treatment stage to effectively remove chlorine and other oxidants before the water reaches the membrane.

What is SDI and why does it matter for RO systems?

The Silt Density Index (SDI) measures the fouling potential of feed water, particularly from fine suspended solids and colloidal material. High SDI levels increase the risk of membrane blockage and reduced performance. Using depth filters or high surface area pleated cartridges helps achieve consistently low SDI levels, improving membrane efficiency and longevity.

Commitment to quality is of paramount importance at PoreFiltration.  We supply filtration solutions that help customersPore_Filter_9001_Logo protect their processes, meet regulatory requirements, and deliver consistent, high-quality finished products across industrial, food & beverage, chemical, and water applications. As such we have been certified to ISO9001, providing a quality management system that covers the entire organization for clarity and transparency in our processes.

Our Quality Commitment

Every PoreFiltration product is supplied with one clear objective: to perform reliably, consistently, and exactly as intended.

We are committed to:

  • Meeting customer, regulatory, and application-specific requirements
  • Supplying filtration products with consistent, repeatable performance
  • Providing clear specifications, traceability, and technical guidance
  • Continually improving our products, processes, and quality systems

If you need any more information on any aspect of quality management and assurance, then give us a call or send us an email - we’d be more than happy to help.

PoreFiltration is committed to supplying filtration products that support the highest standards of water quality, public health protection, and regulatory compliance across municipal, industrial, pharmaceutical, and process water applications. We recognise the critical role filtration plays in safeguarding water supplies, maintaining treatment performance, and supporting compliance with industry regulations and water quality standards.

Our filtration solutions are utilised throughout the water treatment cycle, from raw water intake and potable water production to process water, wastewater treatment, water reuse, and high-purity applications. By supporting the removal of suspended solids, particulate contamination, turbidity, and process-generated contaminants, our products help operators maintain reliable treatment performance while protecting critical downstream assets such as membranes, UV systems, pumps, and distribution infrastructure.

PoreFiltration supplies products suitable for a wide range of regulated water applications, including systems requiring compliance with Drinking Water Inspectorate (DWI) Regulation 31 requirements, potable water treatment processes, Cryptosporidium control strategies, pharmaceutical water systems, and industrial water treatment operations. We work closely with leading filtration manufacturers to ensure that supplied products are supported by appropriate technical documentation, material certifications, and approvals where required for their intended application.



Clean-In-Place (CIP) and Sterilise-In-Place (SIP) systems are critical to maintaining hygiene, product safety, and regulatory compliance in food, beverage, dairy, and pharmaceutical processing.

CIP enables the cleaning of pipelines, vesselSteams, filters, and process equipment without dismantling, using controlled cycles of detergents, temperature, and flow to remove product residues, biofilms, and contaminants.

SIP follows with high-temperature steam sterilisation to eliminate microorganisms and ensure systems are safe for production.

Effective CIP/SIP design ensures:

  • Reliable microbial control
  • Reduced downtime and manual intervention
  • Protection of filtration systems and membranes
  • Consistent product quality and audit readiness

When properly engineered, CIP and SIP are not just cleaning steps they are integral to process performance and operational efficiency.

Read more in our blog: How CIP & SIP Can Extend Cartridge Filter Lifespan.

What Is Utility Filtration?                    Municipal RO system

Utility filtration refers to filtration systems designed to clean and condition fluids used in support roles across manufacturing and processing environments rather than final product filtration. These include:


Utility fluids such as compressed air, steam, water and process gases are essential to industrial operations. Their quality directly affects product safety, equipment performance and regulatory compliance. Advanced utility filtration ensures contaminants are removed before they can compromise products or damage critical assets.

Effective utility filtration prevents contamination, improves product consistency, reduces maintenance costs, and supports regulatory compliance.



CLICK HERE TO READ MORE ON UTILITY FILTRATION SOLUTIONS



The Role of Cartridge Filtration in RO & SWRO Membrane Protection

For RO and SWRO systems, the primary objective is consistent system performance — stable flow, reliable rejection, and extended membrane life — regardless of feed water variability, seasonal changes, or operating conditions. Cartridge filtration plays a critical role in achieving this by removing suspended solids, colloids, and oxidants before they reach the membrane, preventing fouling and premature failure.

From industrial water treatment to large-scale desalination, filtration is applied across three key areas:

  • Preventing contamination entering via feed water (sand, silt, corrosion products, organic matter) using bag filters and coarse pre-filtration stages
  • Controlling particulate and colloidal load prior to the membrane through depth filter cartridges, which trap contaminants throughout the media and offer high dirt-holding capacity
  • Protecting membranes from fine fouling and chemical damage using pleated or high-efficiency cartridge filters and activated carbon filtration to remove fine solids and chlorine, both of which can degrade membrane performance
Utility Filtration: Water Quality & System Protection

In RO and SWRO systems, feed water quality is the single most critical factor influencing membrane performance. Variability in source water whether from surface water, boreholes, or seawater introduces contaminants such as suspended solids, organics, and oxidants that must be carefully controlled.

For operators, this can lead to:

  • Membrane damage from chlorine or oxidants
  • Increased fouling from fine particulates and organics
  • Reduced salt rejection performance
  • Higher operational and maintenance costs
Guard Filtration: Protecting the RO Membrane

As the final barrier before the membrane, guard filtration is critical in preventing particulate ingress that can lead to irreversible fouling or blockage. Even with effective upstream filtration, fine particles and colloids can still pass through and accumulate at the membrane surface.

For operators, this can lead to:

  • Sudden increases in differential pressure
  • Reduced permeate flow rates
  • Increased cleaning frequency
  • Premature membrane replacement

To mitigate this, guard filtration typically relies on:

This stage is particularly important for:
  • High-value RO and SWRO systems, where membrane replacement costs are significant
  • Applications requiring consistent output quality, such as process water or potable water production
Final Filtration: Stabilising Performance Without Compromise

Maintaining stable RO performance requires not only protecting the membrane but ensuring consistent operating conditions over time. Fine particulates, colloids, and residual contaminants can still impact efficiency if not properly managed before reaching the membrane.

For operators, this can lead to:

  • Gradual performance decline
  • Increased energy consumption
  • Variability in permeate quality
  • Higher total cost of ownership

Cartridge filtration supports system stability through:

This stage is particularly important for:

  • Continuous operation systems, where downtime must be minimised
  • Large-scale desalination and industrial RO plants, where efficiency and reliability are critical.
Filtration as a Strategic Tool in RO & SWRO Systems

Filtration in RO and SWRO systems is not simply a pre-treatment step it is a critical component of overall system design and performance optimisation. The correct combination of filtration technologies directly influences membrane lifespan, cleaning frequency, and operational efficiency.

For operators, this can lead to:

  • Reactive maintenance strategies instead of proactive control
  • Higher operating costs due to inefficient filtration
  • Reduced system reliability and uptime
  • Inconsistent long-term performance

A strategic approach to cartridge filtration typically includes:

  • Staged filtration systems combining bag filters, depth filters, and pleated cartridges



  • Application-specific filter selection based on feed water quality and system requirements



  • Optimised change-out strategies to balance performance and cost

This approach is particularly important for:

  • Engineers and system designers, looking to optimise RO system efficiency from the outset
  • Operators managing large or critical infrastructure, where performance, reliability, and cost control are key.
