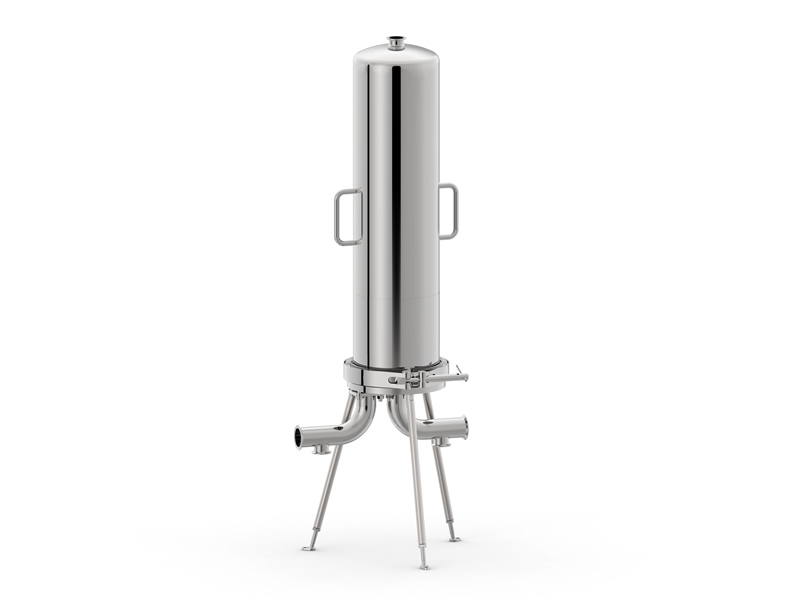

Our Single Cartridge Hygienic Housings are designed for sanitary environments where cleanliness, reliability, and low product hold up are essential. Engineered for compatibility with 10" to 40" code 7 cartridges, these housings offer an ultra-smooth internal finish, crevice-free construction, and a fully drainable design.
Manufactured in 316L stainless steel and finished to meet hygienic standards, these housings ensure easy CIP/SIP procedures and minimal product hold-up.
Technical details
Housing material - 316 St.St
Housing Length - 10", 20" ,30", 40"
No: of cartridges housed - 1
Typical florates - Upto 75m3/hr
Cartridge mounting style - SOE (Industry standard Code 7)
Closure type options - V-Clamp or bolted
Surface finish - Internal: Mechanical polish/Electropolished - External: Mechanical polish/Electropolished
Design codes - PED, ATEX, ASME
Applications.
Technical details [Product A]
| Filter Medium | Polypropylene |
| Available Lengths |
9.75" (24.8cm), 10.0" (25.4cm), 20.0" (50.8cm), 30.0" (76.2cm), 40.0" (101.6cm) |
| Available Micron Ratings |
0.5, 1,3, 5, 10, 20, 30, 50, 75, 100μm |
| Internal Diameter |
1.1" (28mm) / 4.5" (114mm) |
| External Diameter |
2.5" (63mm) |
| Max Operating Temperature | XX degrees |
| Maximum Differential Pressure |
60psid @ 70°F (4.1 Bar @ 30°C) 50psid @ 122°F (3.4 Bar @ 50°C) 30psid @ 158°F (2 Bar @ 70°C) 15psid @ 180°F (1 Bar @ 82°C) |
| Recommended Changeout Differential Pressure |
37psid (2.5 Bar) @ 30°C |
| Regulatory |
All filter bags are supplied free of Silicone. FDA Approved. EU XXX. |
| Datasheets |

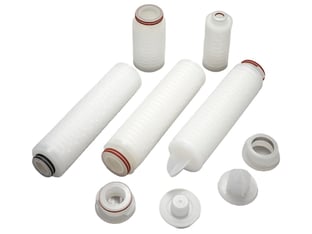

PES, PTFE and PVDF Membrane cartridge filters available in microbial and particulate ratings from 0.1 to 1.0 microns.
Polypropylene and Glass Fibre Pleated cartridge filters in absolute and nominal ratings from 0.2 to 100 microns.
316 st.st multi cartridge housing range suitable for sterile liquid filter applications for flows between 5 to 75m3/hr.
