Multi Cartridge Hygienic Housings

Critical applications when only the best is good enough

Hygenic housing range

Technical details

    • Housing material - 316 St.St

    • Housing Length - 10", 20" ,30", 40"

    • No: of cartridges housed - 1, 3, 5, 7, 12

    • Typical florates - Upto 75m3/hr

    • Inlet/Outlet connections - ASME BPE, DIN 11851, Flanged, Butt weld, BSP, RJT

    • Cartridge mounting style - SOE (Industry standard Code 7)

    • Closure type options - V-Clamp or bolted

    • Suitable for SIP/CIP - Yes

    • Surface finish - Internal: Mechanical polish/Electropolished - External: Mechanical polish/Electropolished

    • Design codes - PED, ATEX, ASME

Applications

  • Sterile and final filtration in healthcare and Pharma
  • Opthalmics final filtration
  • POU filtration in Process Water
  • Final filtration before bottling in Beverage manufature - brewing, wine and mineral/spring waters
  • Prefiltration duties prior to sterilizing membranes
  • Where CIP or SIP procedures will be performed

Need a Replacement?

Order Now

Get a Quick Quote?

Ask an Expert

Speak to an Expert

+44(0) 203 750 8060

Technical details [Product A]

Filter Medium Polypropylene
Available Lengths

9.75" (24.8cm), 10.0" (25.4cm), 20.0" (50.8cm), 30.0" (76.2cm), 40.0" (101.6cm)
Available Micron Ratings

0.5, 1,3, 5, 10, 20, 30, 50, 75, 100μm
Internal Diameter

1.1" (28mm) / 4.5" (114mm)
External Diameter

2.5" (63mm)
Max Operating Temperature  XX degrees
Maximum Differential Pressure

 60psid @ 70°F (4.1 Bar @ 30°C) 50psid @ 122°F (3.4 Bar @ 50°C) 30psid @ 158°F (2 Bar @ 70°C) 15psid @ 180°F (1 Bar @ 82°C)
Recommended Changeout Differential Pressure

37psid (2.5 Bar) @ 30°C
Regulatory

All filter bags are supplied free of Silicone. FDA Approved. EU XXX.
Datasheets

DOWNLOAD DATASHEET



Other Related Products

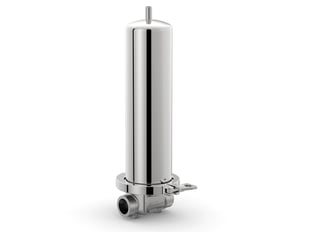

Single Cartridge Industrial HousingsPVI-range-of-single-industrial



Single cartridge st.st housings for industrial liquid and steam applications for flows from 1 to 5 m3/hr and rated at 8, 16 and 40 bar.

View the product

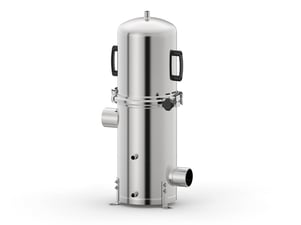

Multi Cartridge Industrial Housings

PVI-range-of-multi-industrial



Multi-cartridge st.st. housings for industrial liquid applications for flows from 5 to 200 m3/hr and rated to 10bar.

View the product

Gas Cartridge Filter  HousingsKMC_MULTI

Gas cartridge filter housings for sterile compressed gas filtration in food, beverage, process water and healthcare applications.

View the product
